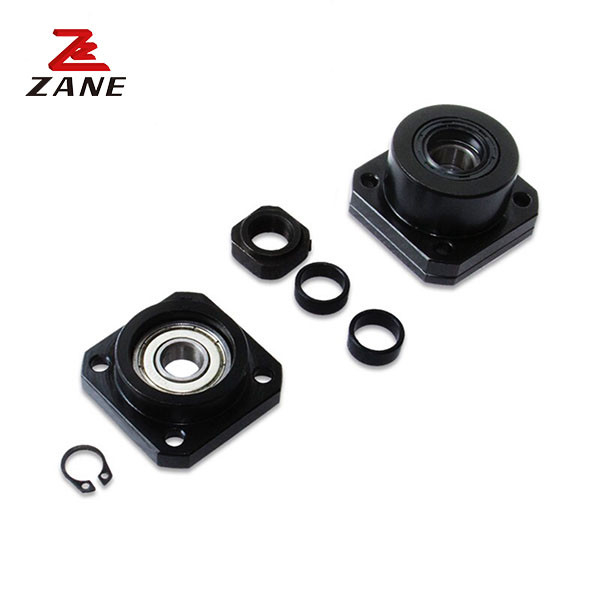

Factory Manufactured High Precision Ball Screw Support Seat Unit FKFF
1. Description
The ball screw support seat is the bearing support seat that supports the connecting screw and the motor. The support seat is generally divided into: fixed side (after adding K, such as BK12) and support unit installation (indicated by F, such as BF12). They are all used to preload adjusted JIS5 level angular contact ball bearings.
2. Specification
FK Fixed Side
| Type | d1 | L | H | F | E | Dg6 | A | PCD | B | L1 | T1 | X | Y | Z |
| FK5 | 5 | 16.5 | 6 | 10.5 | 18.5 | 20 | 34 | 26 | 26 | 5.5 | 3.5 | 3.4 | 6.5 | 4 |
| FK6 | 6 | 20 | 7 | 13 | 22 | 22 | 36 | 28 | 28 | 5.5 | 3.5 | 3.4 | 6.5 | 4 |
| FK8 | 8 | 23 | 9 | 14 | 26 | 28 | 43 | 35 | 35 | 7 | 4 | 3.4 | 6.5 | 4 |
| FK10 | 10 | 27 | 10 | 17 | 29.5 | 34 | 52 | 42 | 42 | 7.5 | 5 | 4.5 | 8 | 4 |
| FK12 | 12 | 27 | 10 | 17 | 29.5 | 36 | 54 | 44 | 44 | 7.5 | 5 | 4.5 | 8 | 4 |
| FK15 | 15 | 32 | 15 | 17 | 36 | 40 | 63 | 50 | 52 | 10 | 6 | 5.5 | 9.5 | 6 |
| FK20 | 20 | 52 | 22 | 30 | 50 | 57 | 85 | 70 | 68 | 8 | 10 | 6.6 | 11 | 10 |
| FK25 | 25 | 57 | 27 | 30 | 60 | 63 | 98 | 80 | 79 | 13 | 10 | 9 | 15 | 13 |
| FK30 | 30 | 62 | 30 | 32 | 61 | 75 | 117 | 95 | 93 | 11 | 12 | 11 | 17.5 | 15 |
FF Floated Side
| Type | d1 | L | H | F | Dg6 | A | PCD | B | X | Y | Z |
| FF6 | 6 | 10 | 6 | 4 | 22 | 36 | 28 | 28 | 3.4 | 6.5 | 4 |
| FF10 | 8 | 12 | 7 | 5 | 28 | 43 | 35 | 35 | 3.4 | 6.5 | 4 |
| FF12 | 10 | 15 | 7 | 8 | 34 | 52 | 42 | 42 | 4.5 | 8 | 4 |
| FF15 | 15 | 17 | 9 | 8 | 40 | 63 | 50 | 50 | 5.5 | 9.5 | 5.5 |
| FF20 | 20 | 20 | 11 | 9 | 57 | 85 | 70 | 68 | 6.6 | 11 | 6.5 |
| FF25 | 25 | 24 | 14 | 10 | 63 | 98 | 80 | 79 | 9 | 14 | 8.5 |
| FF30 | 30 | 27 | 18 | 9 | 75 | 117 | 95 | 93 | 11 | 17.5 | 11 |
