| Place of Origin | China |
| Brand Name | ZANE |
| Certification | CE，ISO |
| Model Number | EKEK |

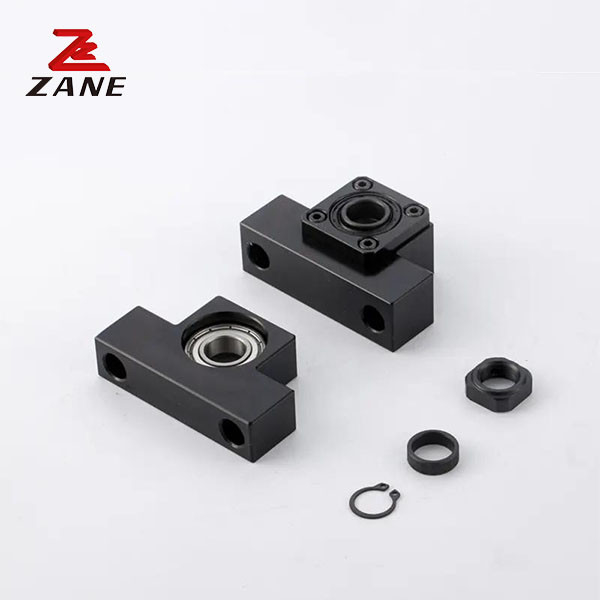

CNC Machine Part Bearing Fixed End Support Ball Screw Seat EKEF Series
1. Description
This type of ballscrew support is very common in the DIY CNC world. Ball screw end support never had our preference, since it's not so easy to mount a stepper motor or servo to this support.Further we see that when you wish to drive the ballscrew with a belt, this is a good and easy standard solution.The blocks we have in stock with the high quality bearings is the type that can be made backlash free, by adjusting the pre-load on the angular contact bearings.
2. Specification
EK Fixed Side
| Type | d1 | L | L1 | L2 | L3 | B | H | b±0.02 | h±0.02 | B1 | H1 | P | X | Y | Z |
| EK5 | 5 | 16.5 | 5.5 | 18.5 | 3.5 | 36 | 21 | 18 | 11 | 20 | 8 | 28 | 4.5 | - | - |
| EK6 | 6 | 20 | 5.5 | 22 | 3.5 | 42 | 25 | 21 | 13 | 18 | 20 | 30 | 5.5 | 9.5 | 11 |
| EK8 | 8 | 23 | 7 | 26 | 4 | 52 | 32 | 26 | 17 | 25 | 26 | 38 | 6.6 | 11 | 12 |
| EK10 | 10 | 24 | 6 | 29.5 | 6 | 70 | 43 | 35 | 25 | 36 | 24 | 52 | 9 | - | - |
| EK12 | 12 | 24 | 6 | 29.5 | 6 | 70 | 43 | 35 | 25 | 36 | 24 | 52 | 9 | - | - |
| EK15 | 15 | 25 | 6 | 36 | 5 | 80 | 49 | 40 | 30 | 41 | 25 | 60 | 11 | - | - |
| EK20 | 20 | 42 | 10 | 50 | 10 | 95 | 58 | 47.5 | 30 | 56 | 25 | 75 | 11 | - | - |
EF Floated Side
| Type | d1 | L | B | H |
±0.02 b |
±0.02 h |
B1 | H1 | P | X | Y | Z |
| EF6 | 6 | 12 | 42 | 25 | 21 | 13 | 18 | 20 | 30 | 5.5 | 9.5 | 11 |
| EF8 | 6 | 14 | 52 | 32 | 26 | 17 | 25 | 26 | 38 | 6.6 | 11 | 12 |
| EF 10 | 8 | 20 | 70 | 43 | 35 | 25 | 36 | 24 | 52 | 9 | - | - |
| EF12 | 10 | 20 | 70 | 43 | 35 | 25 | 36 | 24 | 52 | 9 | - | - |
| EF15 | 15 | 20 | 80 | 49 | 40 | 30 | 41 | 25 | 60 | 9 | - | - |
| EF20 | 20 | 26 | 95 | 58 | 47.5 | 30 | 56 | 25 | 75 | 11 | - | - |
3. About Our Company
Jiangsu Zane Machinery Technology Co., Ltd. is a high-tech mechanical transmission products of high-tech enterprises. The company has 4 branches respectively manage different types of mechanical transmission products research and marketing projects. It has nearly 50 independent intellectual property rights. Is Taiwan YYC rack level agents, is Taiwan Heqing (HAWKKING) linear guide rail, ball screw ,Ball screw support seat,linear guide module research and development pioneers. ZANE module by the majority of customers love and trust. "Knowing kindness and being grateful moisten one's life" is the eternal source of growth for Zayn people.
