Ball Screw End Support
>
|
| Place of Origin | China |
| Brand Name | ZANE |
| Certification | CE，ISO |
| Model Number | FK10 |

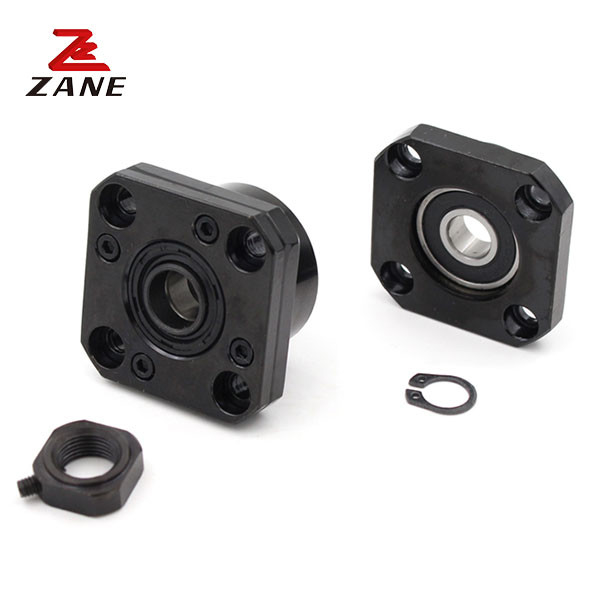

Ball Screw Support Seat FK10 Angular Contact Bearing Deep Groove Ball
1. Description
Ball screw support bearings are specially designed for use in ball screw or lead screw applications. Most ball screw support bearings are angular contact bearings with a steep contact angle, such as 60°, and are available in duplex, triplex, and quadruplex configurations.
2. Specification
FK Fixed Side
| Type | d1 | L | H | F | E | Dg6 | A | PCD | B | L1 | T1 | X | Y | Z |
| FK5 | 5 | 16.5 | 6 | 10.5 | 18.5 | 20 | 34 | 26 | 26 | 5.5 | 3.5 | 3.4 | 6.5 | 4 |
| FK6 | 6 | 20 | 7 | 13 | 22 | 22 | 36 | 28 | 28 | 5.5 | 3.5 | 3.4 | 6.5 | 4 |
| FK8 | 8 | 23 | 9 | 14 | 26 | 28 | 43 | 35 | 35 | 7 | 4 | 3.4 | 6.5 | 4 |
| FK10 | 10 | 27 | 10 | 17 | 29.5 | 34 | 52 | 42 | 42 | 7.5 | 5 | 4.5 | 8 | 4 |
| FK12 | 12 | 27 | 10 | 17 | 29.5 | 36 | 54 | 44 | 44 | 7.5 | 5 | 4.5 | 8 | 4 |
| FK15 | 15 | 32 | 15 | 17 | 36 | 40 | 63 | 50 | 52 | 10 | 6 | 5.5 | 9.5 | 6 |
| FK20 | 20 | 52 | 22 | 30 | 50 | 57 | 85 | 70 | 68 | 8 | 10 | 6.6 | 11 | 10 |
| FK25 | 25 | 57 | 27 | 30 | 60 | 63 | 98 | 80 | 79 | 13 | 10 | 9 | 15 | 13 |
| FK30 | 30 | 62 | 30 | 32 | 61 | 75 | 117 | 95 | 93 | 11 | 12 | 11 | 17.5 | 15 |
FF Floated Side
| Type | d1 | L | H | F | Dg6 | A | PCD | B | X | Y | Z |
| FF6 | 6 | 10 | 6 | 4 | 22 | 36 | 28 | 28 | 3.4 | 6.5 | 4 |
| FF10 | 8 | 12 | 7 | 5 | 28 | 43 | 35 | 35 | 3.4 | 6.5 | 4 |
| FF12 | 10 | 15 | 7 | 8 | 34 | 52 | 42 | 42 | 4.5 | 8 | 4 |
| FF15 | 15 | 17 | 9 | 8 | 40 | 63 | 50 | 50 | 5.5 | 9.5 | 5.5 |
| FF20 | 20 | 20 | 11 | 9 | 57 | 85 | 70 | 68 | 6.6 | 11 | 6.5 |
| FF25 | 25 | 24 | 14 | 10 | 63 | 98 | 80 | 79 | 9 | 14 | 8.5 |
| FF30 | 30 | 27 | 18 | 9 | 75 | 117 | 95 | 93 | 11 | 17.5 | 11 |
3. About Our Company
Jiangsu Zane Machinery Technology Co., Ltd. is a high-tech mechanical transmission products of high-tech enterprises. The company has 4 branches respectively manage different types of mechanical transmission products research and marketing projects. It has nearly 50 independent intellectual property rights. Is Taiwan YYC rack level agents, is Taiwan Heqing (HAWKKING) linear guide rail, ball screw ,Ball screw support seat,linear guide module research and development pioneers. ZANE module by the majority of customers love and trust. "Knowing kindness and being grateful moisten one's life" is the eternal source of growth for Zane people.
