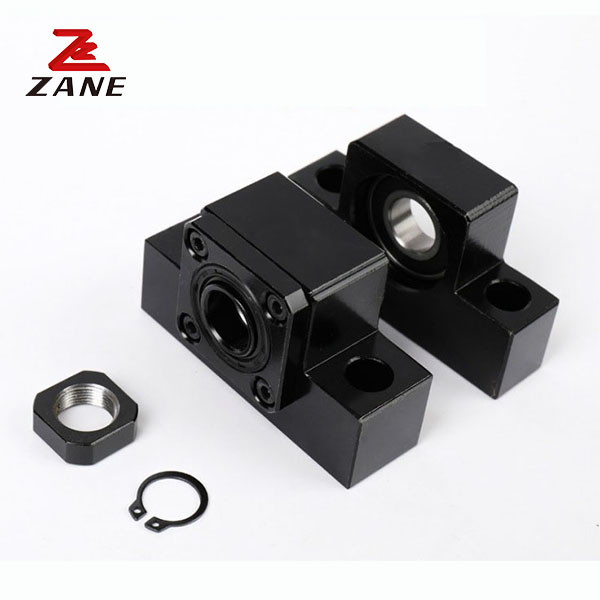

Bearing Housing For Ball Screw Ball Screw Support Seat EK Series
1. Description
Ball screw special bearing seat, also known as ball screw support seat in the market, lead screw support. Generally assembled at both ends of the ball screw, it can provide support for the rotary movement of the ball screw and fix the ball screw. In addition to the dry ball screw, can also be used for other types of lead screw, such as trapezoidal lead screw; Or other occasions that need to provide support for rotary motion, such as splines, optical axes, etc..
2. Specification
EK Fixed Side
| Type | d1 | L | L1 | L2 | L3 | B | H | b±0.02 | h±0.02 | B1 | H1 | P | X | Y | Z |
| EK5 | 5 | 16.5 | 5.5 | 18.5 | 3.5 | 36 | 21 | 18 | 11 | 20 | 8 | 28 | 4.5 | - | - |
| EK6 | 6 | 20 | 5.5 | 22 | 3.5 | 42 | 25 | 21 | 13 | 18 | 20 | 30 | 5.5 | 9.5 | 11 |
| EK8 | 8 | 23 | 7 | 26 | 4 | 52 | 32 | 26 | 17 | 25 | 26 | 38 | 6.6 | 11 | 12 |
| EK10 | 10 | 24 | 6 | 29.5 | 6 | 70 | 43 | 35 | 25 | 36 | 24 | 52 | 9 | - | - |
| EK12 | 12 | 24 | 6 | 29.5 | 6 | 70 | 43 | 35 | 25 | 36 | 24 | 52 | 9 | - | - |
| EK15 | 15 | 25 | 6 | 36 | 5 | 80 | 49 | 40 | 30 | 41 | 25 | 60 | 11 | - | - |
| EK20 | 20 | 42 | 10 | 50 | 10 | 95 | 58 | 47.5 | 30 | 56 | 25 | 75 | 11 | - | - |
EF Floated Side
| Type | d1 | L | B | H |
±0.02 b |
±0.02 h |
B1 | H1 | P | X | Y | Z |
| EF6 | 6 | 12 | 42 | 25 | 21 | 13 | 18 | 20 | 30 | 5.5 | 9.5 | 11 |
| EF8 | 6 | 14 | 52 | 32 | 26 | 17 | 25 | 26 | 38 | 6.6 | 11 | 12 |
| EF 10 | 8 | 20 | 70 | 43 | 35 | 25 | 36 | 24 | 52 | 9 | - | - |
| EF12 | 10 | 20 | 70 | 43 | 35 | 25 | 36 | 24 | 52 | 9 | - | - |
| EF15 | 15 | 20 | 80 | 49 | 40 | 30 | 41 | 25 | 60 | 9 | - | - |
| EF20 | 20 | 26 | 95 | 58 | 47.5 | 30 | 56 | 25 | 75 | 11 | - | - |
