Ball Screw End Support
>
|
| Place of Origin | China |
| Brand Name | ZANE |
| Certification | CE，ISO |
| Model Number | DSG2525 |
1. Description

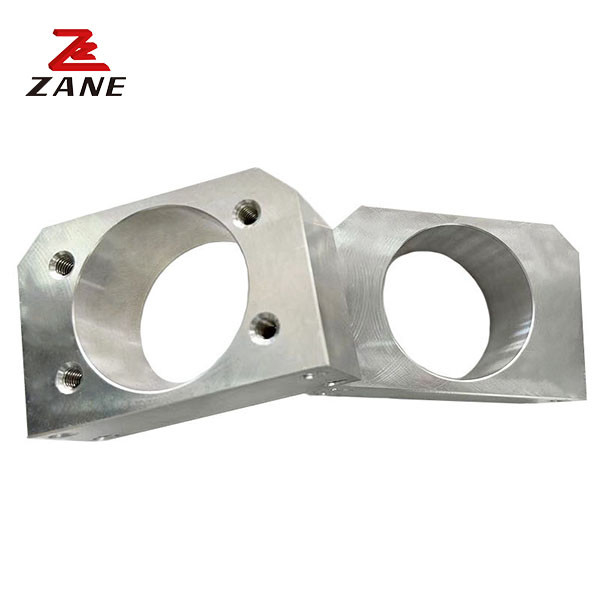

Ball screw nut seat Applied in CNC machine tools, automation, CNC woodworking machinery, laser cutting machine, drilling machine, 3C electronics, glass edging machine, advertising printing, photo machine, servo manipulator, industrial assembly robot, semiconductor production equipment, food processing and packaging, medical equipment and other fields.
2. Specification
| PARCA NO | SOMUN | D | B | H | h | E | L | C1 | C2 | P | X | W | Y |
| DSG 16H | 1605 | 28 | 52 | 40 | 20 | 12 | 40 | 8 | 24 | 40 | M5 | 38 | M5 |
| 1610 | |||||||||||||
| DSG 1616 | 1616 | 32 | 54 | 38 | 19 | 8 | 40 | 8 | 24 | 44 | M5 | 42 | M4 |
| DSG 20H | 2005 | 36 | 62 | 44 | 22 | 12 | 40 | 8 | 24 | 48 | M6 | 47 | M6 |
| 2010 | |||||||||||||
| DSG 2020 | 2020 | 39 | 64 | 46 | 23 | 11 | 40 | 8 | 24 | 52 | M6 | 50 | M5 |
| DSG 25H | 2505 | 40 | 66 | 48 | 24 | 13 | 40 | 8 | 24 | 50 | M6 | 51 | M6 |
| 2510 | |||||||||||||
| DSG 2525 | 2525 | 47 | 68 | 56 | 28 | 9 | 40 | 8 | 24 | 50 | M6 | 60 | M6 |
| DSG 32H | 3205 | 50 | 86 | 62 | 31 | 17 | 40 | 8 | 24 | 66 | M8 | 65 | M8 |
| 3210 | |||||||||||||
| DSG 40H | 4005 | 63 | 100 | 70 | 35 | 19 | 40 | 8 | 24 | 80 | M8 | 78 | M8 |
| 4010 |
