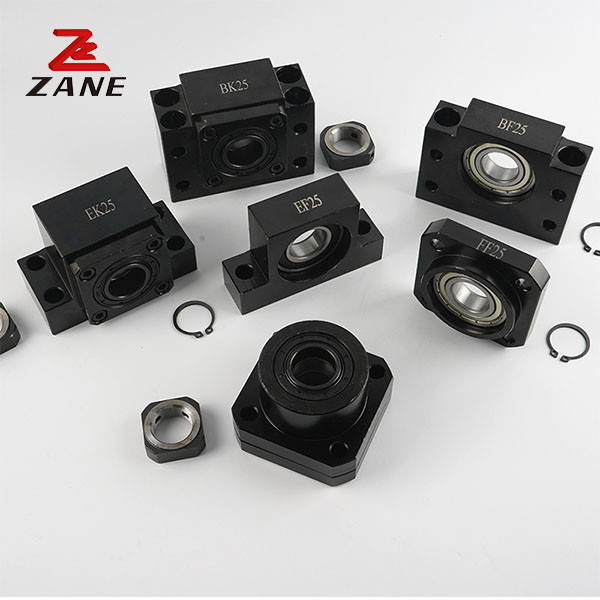

Ball Screw Ballscrews End Support Bearing EK06 With Deep Groove Ball
1. EK series
Ball screw support, containing for subminiature ball screw developed by contact Angle 45 subminiature angular contact ball bearings, can obtain high rigidity, high precision of steady turning performance. Support the lateral support unit use deep groove ball bearings.
Bearing End Support Model number:
Fixed side: EK06, EK08, EK10, EK12, EK15, EK20,EK25
Floated side: EF06,EF08,EF10,EF12,EF15,EF20,EF25
2. Specification
EK Fixed Side
| Type | d1 | L | L1 | L2 | L3 | B | H | b±0.02 | h±0.02 | B1 | H1 | P | X | Y | Z |
| EK5 | 5 | 16.5 | 5.5 | 18.5 | 3.5 | 36 | 21 | 18 | 11 | 20 | 8 | 28 | 4.5 | - | - |
| EK6 | 6 | 20 | 5.5 | 22 | 3.5 | 42 | 25 | 21 | 13 | 18 | 20 | 30 | 5.5 | 9.5 | 11 |
| EK8 | 8 | 23 | 7 | 26 | 4 | 52 | 32 | 26 | 17 | 25 | 26 | 38 | 6.6 | 11 | 12 |
| EK10 | 10 | 24 | 6 | 29.5 | 6 | 70 | 43 | 35 | 25 | 36 | 24 | 52 | 9 | - | - |
| EK12 | 12 | 24 | 6 | 29.5 | 6 | 70 | 43 | 35 | 25 | 36 | 24 | 52 | 9 | - | - |
| EK15 | 15 | 25 | 6 | 36 | 5 | 80 | 49 | 40 | 30 | 41 | 25 | 60 | 11 | - | - |
| EK20 | 20 | 42 | 10 | 50 | 10 | 95 | 58 | 47.5 | 30 | 56 | 25 | 75 | 11 | - | - |
EF Floated Side
| Type | d1 | L | B | H |
±0.02 b |
±0.02 h |
B1 | H1 | P | X | Y | Z |
| EF6 | 6 | 12 | 42 | 25 | 21 | 13 | 18 | 20 | 30 | 5.5 | 9.5 | 11 |
| EF8 | 6 | 14 | 52 | 32 | 26 | 17 | 25 | 26 | 38 | 6.6 | 11 | 12 |
| EF 10 | 8 | 20 | 70 | 43 | 35 | 25 | 36 | 24 | 52 | 9 | - | - |
| EF12 | 10 | 20 | 70 | 43 | 35 | 25 | 36 | 24 | 52 | 9 | - | - |
| EF15 | 15 | 20 | 80 | 49 | 40 | 30 | 41 | 25 | 60 | 9 | - | - |
| EF20 | 20 | 26 | 95 | 58 | 47.5 | 30 | 56 | 25 | 75 | 11 | - | - |
