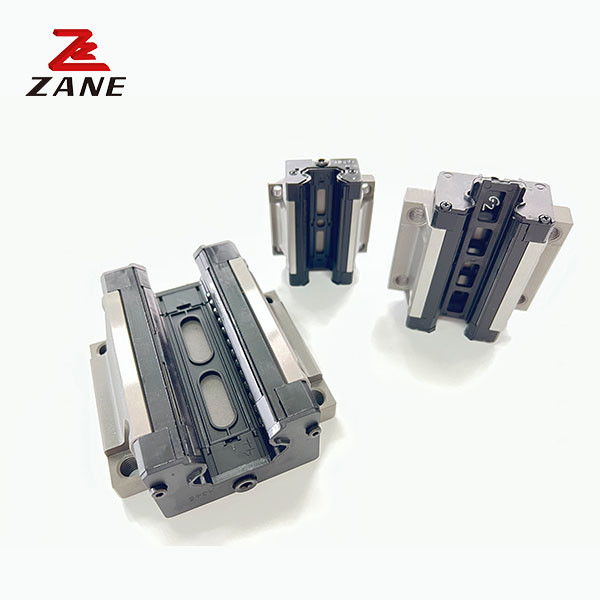

Gew Profile Linear Guides Carriage Blocks For Dispensing Machine
Simple lubrication structure
If the sliding guide is insufficiently lubricated, the metal on the contact surface will directly rub against the bed, and it is not easy for the sliding guide to be lubricated enough, and it is necessary to drill holes in the appropriate position of the bed to supply oil. The linear slide rail has been equipped with a grease nozzle on the slide block, which can be directly injected into the grease with a grease gun, or can be replaced with a special oil pipe joint to connect the oil supply pipe to lubricate with an automatic oil supply machine.
| Model | Combination size (mm) | Block size(mm) | Slide rail size(mm) |
Fixing bolts for slide rails size |
Basic dynamic fixed load | Basic fixed fixed load | Allowable static moment | weight | ||||||||||||||||||||||||
| Mr kN-m |
Mp kN-m |
My kN-m |
block kg |
slide Kg/m |
||||||||||||||||||||||||||||
| H | Hi | N | W | B | Bi | C | L1 | L | Ki | K2 | G | M | T | Ti | h2 | h3 | Wr | Hr | D | h | d | P | E | (nnn) | C(kN) | Co(kN) | ||||||
| GEW15SA | 24 | 4.5 | 18.5 | 52 | 41 | 5.5 | - | 23.1 | 40.1 | 14.8 | 3.5 | 5.7 | M5/φ4.5 | 5 | 7 | 5.5 | 6 | 15 | 12.5 | 6 | 4.5 | 3.5 | 60 | 20 | M3xl6 | 5.35 | 9.40 | 0.08 | 0.04 | 0.04 | 0.12 | 1.25 |
| GEW15CA | 26 | 39.8 | 56.8 | 10.15 | 7.83 | 16.19 | 0.13 | 0.10 | 0.10 | 0.21 | ||||||||||||||||||||||
| GEW20SA | 28 | 6 | 19.5 | 59 | 49 | 5 | - | 29 | 50 | 18.75 | 415 | 12 | M6/φ5.5 | 7 | 9 | 6 | 6 | 20 | 15.5 | 9.5 | 8.5 | 6 | 60 | 20 | M5xl6 | 7.23 | 12.74 | 0.13 | 0.06 | 0.06 | 0.19 | 2.08 |
| GEW20CA | 32 | 48.1 | 69.1 | 12.3 | 10.31 | 21.13 | 0.22 | 0.16 | 0.16 | 0.32 | ||||||||||||||||||||||
|
GEW25SA GEW25CA |
33 | 7 | 25 | 73 | 60 | 6.5 | 一 | 35.5 | 59.1 | 21.9 | 4.55 | 12 | M8/φ7 | g | 10 | 8 | 8 | 23 | 18 | 11 | 9 | 7 | 60 | 20 | M6x20 | 11.40 | 19.50 | 0.23 | 0.12 | 0.12 | 0.35 | 2.67 |
| 35 | 59 | 82.6 | 16.15 | 16.27 | 32.40 | 0.38 | 0.32 | 0.32 | 0.59 | |||||||||||||||||||||||
| GEW30SA | 42 | 10 | 31 | 90 | 72 | 9 | - | 41.5 | 69.5 | 26.75 | 6 | 12 | M10/φ9 | 7 | 10 | 8 | 9 | 28 | 23 | 11 | 9 | 7 | 80 | 20 | M6x25 | 16.42 | 28.10 | 0.40 | 0.21 | 0.21 | 0.62 | 4.35 |
| GEW30CA | 40 | 70.1 | 98.1 | 21.05 | 23.70 | 47.46 | 0.68 | 0.55 | 0.55 | 1.04 | ||||||||||||||||||||||
| GEW35SA | 48 | 11 | 33 | 100 | 82 | 9 | - | 45 | 75 | 28.5 | 7 | 7 | M10/φ9 | 10 | 13 | &5 | &5 | 34 | 27.5 | 14 | 12 | 9 | 80 | 20 | M6x25 | 16.42 | 28.10 | 0.40 | 0.21 | 0.21 | 0.62 | 4.35 |
| GEW35CA | 50 | 78 | 108 | 20 | 23.70 | 47.46 | 0.68 | 0.55 | 0.55 | 1.04 | ||||||||||||||||||||||
