| Place of Origin | China |
| Brand Name | ZANE |
| Certification | CE，ISO |
| Model Number | ZANE-ghw |

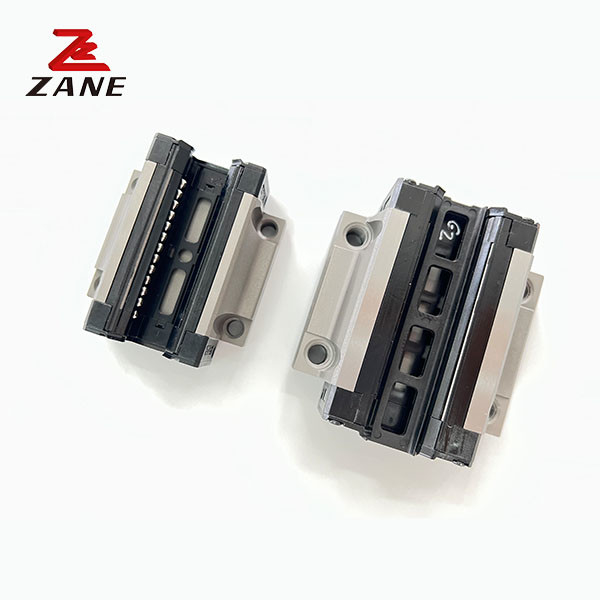

Linear Sliding Gide with HGW20 Carriage Block for DIY 3D Printer CNC Machine
| Model | Combination size (mm) | Block size(mm) | Slide rail size(mm) |
Fixing bolts for slide rails size |
Basic dynamic fixed load | Basic fixed fixed load | Allowable static moment | weight | ||||||||||||||||||||||||||
| Mr kN-m |
Mp kN-m |
My kN-m |
block kg |
slide kg/m |
||||||||||||||||||||||||||||||
| H | Hi | N | W | B | Bi | c | U | L | Kl | G | M (A/B) | T | Ti | h2 | h3 | Wr | Hr | D | h | d | P | E | (mm) | C(kN) | C0(kN) | |||||||||
| GHW15CA | 24 | 4.3 | 16 | 47 | 38 | 4.5 | 30 | 39.4 | 61.4 | 8 | 5.3 | M5/ φ4.5 | 6 | 8.9 | 3.95 | 3.7 | 15 | 15 | 7.5 | 5.3 | 4.5 | 60 | 20 | M4xl6 | 11. 38 | 25.31 | 0.17 | 0.15 | 0.15 | 0.17 | 1.45 | |||
| GHW20CA | 30 | 4.6 | 21.5 | 63 | 53 | 5 | 40 | 50.5 | 77.5 | 10.25 | 12 | M6/φ6 | 8 | 10 | 6 | 7 | 20 | 17.5 | 9.5 | 8.5 | 6 | 60 | 20 | M5xl6 | 17.75 | 37.84 | 0.38 | 0.27 | 0.27 | 0.40 | 2.21 | |||
| GHW20HA | 65.2 | 92.2 | 17.6 | 21.18 | 48.84 | 0.48 | 0.47 | 0.47 | 0.52 | |||||||||||||||||||||||||
| GHW25CA | 36 | 5.5 | 23.5 | 70 | 57 | 6.5 | 45 | 58 | 84 | 11.8 | 12 | M8/φ77 | 8 | 14 | 6 | 9 | 23 | 22 | 11 | 9 | 7 | 60 | 20 | M6x20 | 26.48 | 56.19 | 0.64 | 0.51 | 0.51 | 0.59 | 3.21 | |||
| GHW25HA | 78.6 | 104.6 | 22.1 | 32.75 | 76.00 | 0.87 | 0.88 | 0.88 | 0.80 | |||||||||||||||||||||||||
| GHW30CA | 42 | 6 | 31 | 90 | 72 | 9 | 52 | 70 | 97.4 | 14.25 | 12 | M10/φ9 | 8.5 | 16 | 6.5 | 10.8 | 28 | 26 | 14 | 12 | 9 | 80 | 20 | M8x25 | 38.74 | 83.06 | 1.06 | 0.85 | 0.85 | 1.09 | 4.47 | |||
| GHW30HA | 93 | 120.4 | 25.75 | 47.27 | 110.13 | 1.40 | 1.47 | 1.47 | 1.44 | |||||||||||||||||||||||||
| GHW35CA | 48 | 7.5 | 33 | 100 | 82 | 9 | 62 | 80 | 112.4 | 14.6 | 12 | M10/φ9 | 10.1 | 18 | 9 | 12.6 | 34 | 29 | 14 | 12 | 9 | 80 | 20 | M8x25 | 49.52 | 102.87 | 1.73 | 1.20 | 1.20 | 1.56 | 6.30 | |||
| GHW35HA | 105.8 | 138.2 | 27.5 | 60.21 | 136.31 | 2.29 | 2.08 | 2.08 | 2.06 | |||||||||||||||||||||||||
| GW45CA | 60 | 9.5 | 37.5 | 120 | 100 | 10 | 80 | 97 | 139.4 | 13 | 12.9 | M12/φ11 | 15.1 | 22 | 8.5 | 20.5 | 45 | 38 | 20 | 17 | 14 | 105 | 22.5 | M12x35 | 77.57 | 155.93 | 3.01 | 2.35 | 2.35 | 2.79 | 10.41 | |||
| GHW45HA | 128.8 | 171.2 | 28.9 | 94.54 | 207.12 | 4.00 | 4.07 | 4.07 | 369 | |||||||||||||||||||||||||
| GHW55CA | 70 | 13 | 43.5 | 140 | 116 | 12 | 95 | 117.7 | 166.7 | 17.35 | 12.9 | M14/φ14 | 17.5 | 26.5 | 12 | 19 | 53 | 44 | 23 | 20 | 16 | 120 | 30 | M14x45 | 114.44 | 227.81 | 5.66 | 4.06 | 4.06 | 4.52 | 15.08 | |||
| GHW55HA | 155.8 | 204.8 | 36.4 | 139.35 | 301.26 | 7.49 | 7.01 | 7.01 | 5.96 | |||||||||||||||||||||||||
| GHW65CA | 90 | 15 | 53.5 | 170 | 142 | 14 | 110 | 144.2 | 200.2 | 23.1 | 12.9 | M16/φ16 | 25 | 37.5 | 15 | 15 | 63 | 53 | 26 | 22 | 18 | 150 | 35 | M16x50 | 163.63 | 324.71 | 10.02 | 6.44 | 6.44 | 9.17 | 21.18 | |||
| GHW65HA | 203.6 | 259.6 | 52.8 | 208.36 | 457.15 | 14.15 | 11.12 | 11.12 | 12.89 | |||||||||||||||||||||||||
