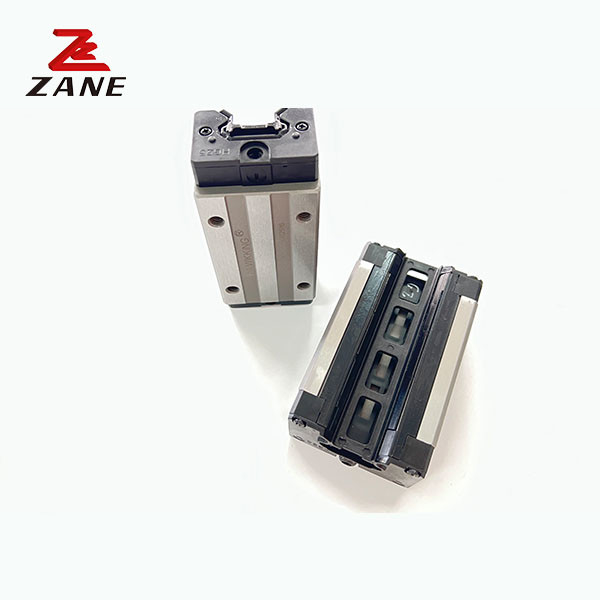

Linear Guideways
>
|
| Place of Origin | China |
| Brand Name | ZANE |
| Certification | CE，ISO |
| Model Number | ZANE-GEH |
Product Features:
1, automatic heart conditioning ability
2, with interchangeability
3, all directions are high rigidity
Product Application
1, machining center
2, machine tool
3, precision processing machine
4, heavy cutting machine
5, marble cutting machine
6, grinding machine
7, the injection machine
8, punch
9, automated equipment
10, transportation equipment
11, measuring instruments
| Model | Combination size (mm) | Block size(mm) | Slide rail size(mm) |
Fixing bolts for slide rails |
Basic dynamic fixed load | Basic fixed fixed load | Allowable static moment | weight | |||||||||||||||||||||||||
| Mr kN-m |
Mp |
My kN-m |
block |
slide |
|||||||||||||||||||||||||||||
| H | Hi | N | W | B | Bi | C | Li | L | Ki | Ki | G | Mxl | T | H2 | h3 | w/ | Hr | D | h | d | P | E | (mm ) | C(kN) | Co(kN) | ||||||||
| GEH15SA | 24 | 4.5 | 9.5 | 34 | 26 | 4 | - | 23.1 | 40.1 | 14.8 | 3.5 | 5.7 | M4x6 | 6 | 5.5 | 6 | 15 | 12.5 | 6 | 4.5 | 3.5 | 60 | 20 | M3xl6 | 5.35 | 9.40 | 0.08 | 0.04 | 0.04 | 0.09 | 1.25 | ||
| GEH15CA | 26 | 39.8 | 56.8 | 10.15 | 7.83 | 16.19 | 0.13 | 0.10 | 0.10 | 0.15 | |||||||||||||||||||||||
| GEH20SA | 28 | 6 | 11 | 42 | 32 | 5 | - | 29 | 50 | 18.75 | 4.15 | 12 | M5x7 | 7.5 | 6 | 6 | 20 | 15.5 | 9.5 | 8.5 | 6 | 60 | 20 | M5xl6 | 7.23 | 12.74 | 0.13 | 0.06 | 0.06 | 0.15 | 2.08 | ||
| GEH20CA | 32 | 48.1 | 69.1 | 12.3 | 10.31 | 21.13 | 0.22 | 0.16 | 0.16 | 0.24 | |||||||||||||||||||||||
| GEH25SA | 33 | 7 | 12.5 | 48 | 35 | 6.5 | - | 35.5 | 59.1 | 21.9 | 4.55 | 12 | M6x9 | 8 | 8 | 8 | 23 | 18 | 11 | 9 | 7 | 60 | 20 | M6x20 | 11.40 | 19.50 | 0.23 | 0.12 | 0.12 | 0.25 | 2.67 | ||
| GEH25CA | 35 | 59 | 82.6 | 16.15 | 16.27 | 32.40 | 0.38 | 0.32 | 0.32 | 0.41 | |||||||||||||||||||||||
| GEH30SA | 42 | 10 | 16 | 60 | 40 | 10 | - | 41.5 | 69.5 | 26.75 | 6 | 12 | M3xl2 | 9 | 8 | 9 | 28 | 23 | 11 | 9 | 7 | 80 | 20 | M6x25 | 16.42 | 28.10 | 0.40 | 0.21 | 0.21 | 0.45 | 4.35 | ||
| GEH30CA | 40 | 70.1 | 98.1 | 21.05 | 23.70 | 47.46 | 0.68 | 0.55 | 0.55 | 0.76 | |||||||||||||||||||||||
| GEH35SA | 48 | 11 | 18 | 70 | 50 | 10 | - | 45 | 75 | 28.5 | 7 | 12 | M8xl2 | 10 | 8.5 | 8.5 | 34 | 27.5 | 14 | 12 | 9 | 80 | 20 | M8x25 | 16.42 | 28.10 | 0.40 | 0.21 | 0.21 | 0.45 | 6.14 | ||
| GEH35CA | 50 | 78 | 108 | 20 | 33.35 | 64.84 | 0.98 | 0.69 | 0.69 | 1.13 | |||||||||||||||||||||||
