Linear Guideways
>
|
| Place of Origin | China |
| Brand Name | ZANE |
| Certification | CE，ISO |
| Model Number | ZANE-GEW |

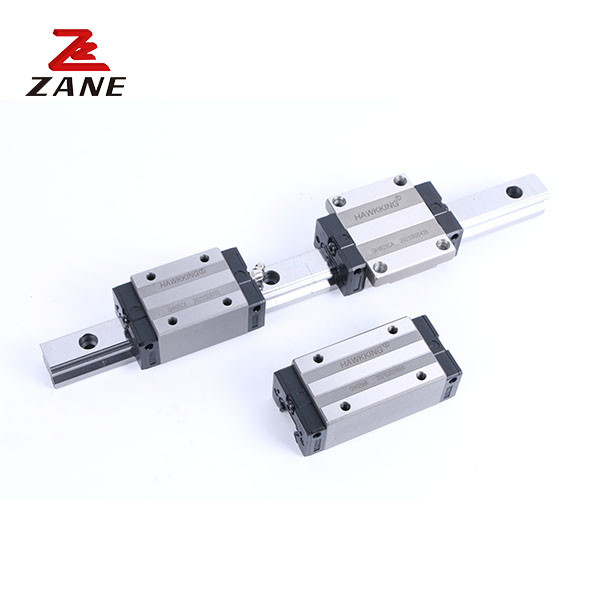

Professional Cnc Guides Linear Guide linear actuator GEW35CA
When machine that vectoring by linear guide, the friction coefficient will be 1/50 of sliding frictionco efficient, as the friction method of linear guide is rolling friction, the disparity of dynamic friction and static friction will become smaller, when machine runs, there will be no slipping phenomenon and the positioning accuracy can reach very high
Four Direction Equal Load Capacity
JSH rail rolling body is to be designed with special pressure angle which make it can bear the same rated load of its radial, anti radial and horizontal direction
| Model | Combination size (mm) | Block size(mm) | Slide rail size(mm) |
Fixing bolts for slide rails |
Basic dynamic fixed load | Basic fixed fixed load | Allowable static moment | weight | ||||||||||||||||||||||||
| Mr kN-m |
Mp |
My kN-m |
block |
slide |
||||||||||||||||||||||||||||
| H | Hi | N | W | B | Bi | C | L1 | L | Ki | K2 | G | M | T | Ti | h2 | h3 | Wr | Hr | D | h | d | P | E | (nnn) | C(kN) | Co(kN) | ||||||
| GEW15SA | 24 | 4.5 | 18.5 | 52 | 41 | 5.5 | - | 23.1 | 40.1 | 14.8 | 3.5 | 5.7 | M5/φ4.5 | 5 | 7 | 5.5 | 6 | 15 | 12.5 | 6 | 4.5 | 3.5 | 60 | 20 | M3xl6 | 5.35 | 9.40 | 0.08 | 0.04 | 0.04 | 0.12 | 1.25 |
| GEW15CA | 26 | 39.8 | 56.8 | 10.15 | 7.83 | 16.19 | 0.13 | 0.10 | 0.10 | 0.21 | ||||||||||||||||||||||
| GEW20SA | 28 | 6 | 19.5 | 59 | 49 | 5 | - | 29 | 50 | 18.75 | 415 | 12 | M6/φ5.5 | 7 | 9 | 6 | 6 | 20 | 15.5 | 9.5 | 8.5 | 6 | 60 | 20 | M5xl6 | 7.23 | 12.74 | 0.13 | 0.06 | 0.06 | 0.19 | 2.08 |
| GEW20CA | 32 | 48.1 | 69.1 | 12.3 | 10.31 | 21.13 | 0.22 | 0.16 | 0.16 | 0.32 | ||||||||||||||||||||||
|
GEW25SA |
33 | 7 | 25 | 73 | 60 | 6.5 | 一 | 35.5 | 59.1 | 21.9 | 4.55 | 12 | M8/φ7 | g | 10 | 8 | 8 | 23 | 18 | 11 | 9 | 7 | 60 | 20 | M6x20 | 11.40 | 19.50 | 0.23 | 0.12 | 0.12 | 0.35 | 2.67 |
| 35 | 59 | 82.6 | 16.15 | 16.27 | 32.40 | 0.38 | 0.32 | 0.32 | 0.59 | |||||||||||||||||||||||
| GEW30SA | 42 | 10 | 31 | 90 | 72 | 9 | - | 41.5 | 69.5 | 26.75 | 6 | 12 | M10/φ9 | 7 | 10 | 8 | 9 | 28 | 23 | 11 | 9 | 7 | 80 | 20 | M6x25 | 16.42 | 28.10 | 0.40 | 0.21 | 0.21 | 0.62 | 4.35 |
| GEW30CA | 40 | 70.1 | 98.1 | 21.05 | 23.70 | 47.46 | 0.68 | 0.55 | 0.55 | 1.04 | ||||||||||||||||||||||
| GEW35SA | 48 | 11 | 33 | 100 | 82 | 9 | - | 45 | 75 | 28.5 | 7 | 7 | M10/φ9 | 10 | 13 | &5 | &5 | 34 | 27.5 | 14 | 12 | 9 | 80 | 20 | M6x25 | 16.42 | 28.10 | 0.40 | 0.21 | 0.21 | 0.62 | 4.35 |
| GEW35CA | 50 | 78 | 108 | 20 | 23.70 | 47.46 | 0.68 | 0.55 | 0.55 | 1.04 | ||||||||||||||||||||||
