| Place of Origin | China |
| Brand Name | ZANE |
| Certification | CE，ISO |
| Model Number | ZANE-GEW |

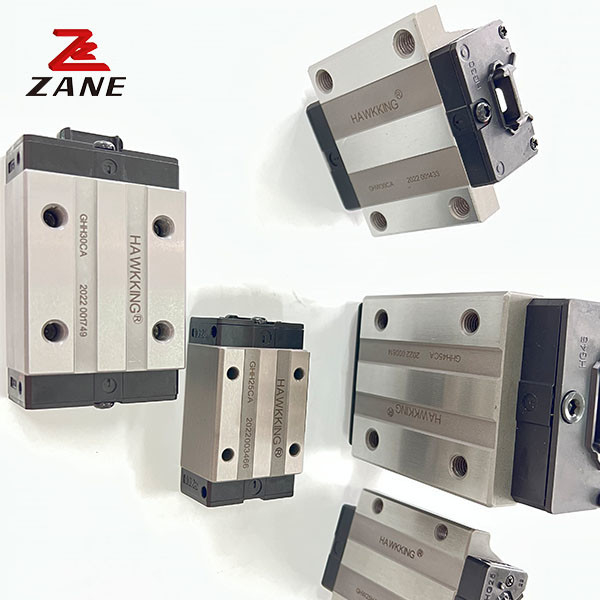

Cnc Standardized Processing Corrosion Resistance Linear Circular Guides GEW30CA
Advantage
1. Adapt to various work too assembled
2. Designed with L-shaped or extended type
3. Self-aligning ability
4. The slider and the guide rail are interchangeable
5. High rigidity in all directions
6. The product is easy to install, easy to operate and fast to transport.
7. High-precision machining: from material optimization to fully automated equipment
8. Quality Assurance: The most efficient laser quality inspection instrument and self-developed slider simulation operation instrument for accuracy inspection
9. Technological innovation: The product has applied for six invention patents and used 27 patents.
| Model | Combination size (mm) | Block size(mm) | Slide rail size(mm) |
Fixing bolts for slide rails |
Basic dynamic fixed load | Basic fixed fixed load | Allowable static moment | weight | ||||||||||||||||||||||||
| Mr kN-m |
Mp |
My kN-m |
block |
slide |
||||||||||||||||||||||||||||
| H | Hi | N | W | B | Bi | C | L1 | L | Ki | K2 | G | M | T | Ti | h2 | h3 | Wr | Hr | D | h | d | P | E | (nnn) | C(kN) | Co(kN) | ||||||
| GEW15SA | 24 | 4.5 | 18.5 | 52 | 41 | 5.5 | - | 23.1 | 40.1 | 14.8 | 3.5 | 5.7 | M5/φ4.5 | 5 | 7 | 5.5 | 6 | 15 | 12.5 | 6 | 4.5 | 3.5 | 60 | 20 | M3xl6 | 5.35 | 9.40 | 0.08 | 0.04 | 0.04 | 0.12 | 1.25 |
| GEW15CA | 26 | 39.8 | 56.8 | 10.15 | 7.83 | 16.19 | 0.13 | 0.10 | 0.10 | 0.21 | ||||||||||||||||||||||
| GEW20SA | 28 | 6 | 19.5 | 59 | 49 | 5 | - | 29 | 50 | 18.75 | 415 | 12 | M6/φ5.5 | 7 | 9 | 6 | 6 | 20 | 15.5 | 9.5 | 8.5 | 6 | 60 | 20 | M5xl6 | 7.23 | 12.74 | 0.13 | 0.06 | 0.06 | 0.19 | 2.08 |
| GEW20CA | 32 | 48.1 | 69.1 | 12.3 | 10.31 | 21.13 | 0.22 | 0.16 | 0.16 | 0.32 | ||||||||||||||||||||||
|
GEW25SA |
33 | 7 | 25 | 73 | 60 | 6.5 | 一 | 35.5 | 59.1 | 21.9 | 4.55 | 12 | M8/φ7 | g | 10 | 8 | 8 | 23 | 18 | 11 | 9 | 7 | 60 | 20 | M6x20 | 11.40 | 19.50 | 0.23 | 0.12 | 0.12 | 0.35 | 2.67 |
| 35 | 59 | 82.6 | 16.15 | 16.27 | 32.40 | 0.38 | 0.32 | 0.32 | 0.59 | |||||||||||||||||||||||
| GEW30SA | 42 | 10 | 31 | 90 | 72 | 9 | - | 41.5 | 69.5 | 26.75 | 6 | 12 | M10/φ9 | 7 | 10 | 8 | 9 | 28 | 23 | 11 | 9 | 7 | 80 | 20 | M6x25 | 16.42 | 28.10 | 0.40 | 0.21 | 0.21 | 0.62 | 4.35 |
| GEW30CA | 40 | 70.1 | 98.1 | 21.05 | 23.70 | 47.46 | 0.68 | 0.55 | 0.55 | 1.04 | ||||||||||||||||||||||
| GEW35SA | 48 | 11 | 33 | 100 | 82 | 9 | - | 45 | 75 | 28.5 | 7 | 7 | M10/φ9 | 10 | 13 | &5 | &5 | 34 | 27.5 | 14 | 12 | 9 | 80 | 20 | M6x25 | 16.42 | 28.10 | 0.40 | 0.21 | 0.21 | 0.62 | 4.35 |
| GEW35CA | 50 | 78 | 108 | 20 | 23.70 | 47.46 | 0.68 | 0.55 | 0.55 | 1.04 | ||||||||||||||||||||||
