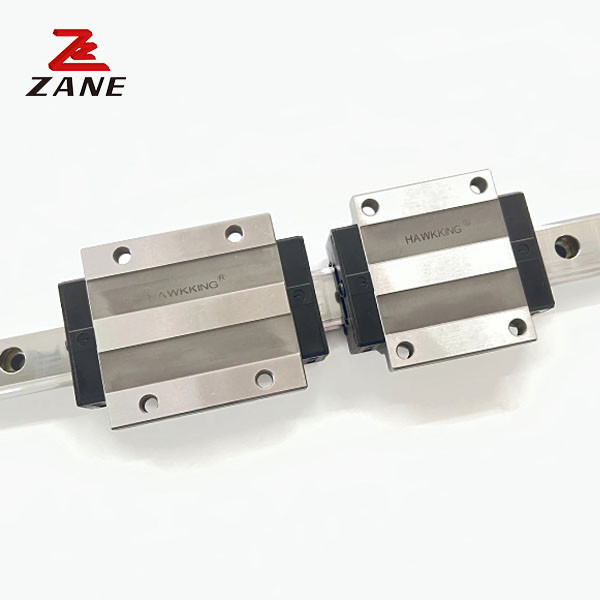

HGW30 2 Axis Linear Slide 4000mm High Accuracy Linear Guide Rail System
  • HGW30 2 Axis Linear Slide 4000mm High Accuracy Linear Guide Rail System
HGW30 2 Axis Linear Slide 4000mm High Accuracy Linear Guide Rail System

HGW30 2 Axis Linear Slide 4000mm High Accuracy Linear Guide Rail System

Place of Origin China
Brand Name ZANE
Certification CE，ISO
Model Number ZANE-ghw
Product Details
Product Name:
Heavy Duty Linear Guide Rail
Length:
100-6000mm(Customized)
Application:
Automatic System
Keyword:
Linear Guide Rail Ball Bearing
Structure:
Slide Rail + Slide Block
Block Type:
With Flange/ Without Flange
Linear Guide Type:
W Type Or H Type Or R Type
Feature:
High Rigidity , High Accuracy
Highlight:

HGW30 2 axis linear slide

,

high accuracy 2 axis linear slide

,

4000mm linear guide rail system

Product Description

Customized linear slide rail System 2 Axis HGW30 100-6000mm



Application of Linear Guide Rail and Block:

*machine centers

*cnc lathes
*grinding machines
*precision machining machines
*heavy cutting machines
*automation devices
*transportation equipment
*measuring equipment
*devices requiring high positional accuracy
*high speed transportation equipment
*precision measuring equipment
*semiconductor manufacturing equipment
*woodworking machinery



Model Combination size (mm) Block size(mm) Slide rail size(mm)

Fixing bolts for slide rails
size

 Basic dynamic fixed load Basic fixed fixed load Allowable static moment weight
Mr kN-m

Mp
kN-m

 My kN-m

block
kg

slide
kg/m
H Hi N W B Bi c U L Kl G M (A/B) T Ti h2 h3 Wr Hr D h d P E (mm) C(kN) C0(kN)
GHW15CA 24 4.3 16 47 38 4.5 30 39.4 61.4 8 5.3 M5/ φ4.5 6 8.9 3.95 3.7 15 15 7.5 5.3 4.5 60 20 M4xl6 11. 38 25.31 0.17 0.15 0.15 0.17 1.45
GHW20CA 30 4.6 21.5 63 53 5 40 50.5 77.5 10.25 12 M6/φ6 8 10 6 7 20 17.5 9.5 8.5 6 60 20 M5xl6 17.75 37.84 0.38 0.27 0.27 0.40 2.21
GHW20HA 65.2 92.2 17.6 21.18 48.84 0.48 0.47 0.47 0.52
GHW25CA 36 5.5 23.5 70 57 6.5 45 58 84 11.8 12 M8/φ77 8 14 6 9 23 22 11 9 7 60 20 M6x20 26.48 56.19 0.64 0.51 0.51 0.59 3.21
GHW25HA 78.6 104.6 22.1 32.75 76.00 0.87 0.88 0.88 0.80
GHW30CA 42 6 31 90 72 9 52 70 97.4 14.25 12 M10/φ9 8.5 16 6.5 10.8 28 26 14 12 9 80 20 M8x25 38.74 83.06 1.06 0.85 0.85 1.09 4.47
GHW30HA 93 120.4 25.75 47.27 110.13 1.40 1.47 1.47 1.44
GHW35CA 48 7.5 33 100 82 9 62 80 112.4 14.6 12 M10/φ9 10.1 18 9 12.6 34 29 14 12 9 80 20 M8x25 49.52 102.87 1.73 1.20 1.20 1.56 6.30
GHW35HA 105.8 138.2 27.5 60.21 136.31 2.29 2.08 2.08 2.06
GW45CA 60 9.5 37.5 120 100 10 80 97 139.4 13 12.9 M12/φ11 15.1 22 8.5 20.5 45 38 20 17 14 105 22.5 M12x35 77.57 155.93 3.01 2.35 2.35 2.79 10.41
GHW45HA 128.8 171.2 28.9 94.54 207.12 4.00 4.07 4.07 369
GHW55CA 70 13 43.5 140 116 12 95 117.7 166.7 17.35 12.9 M14/φ14 17.5 26.5 12 19 53 44 23 20 16 120 30 M14x45 114.44 227.81 5.66 4.06 4.06 4.52 15.08
GHW55HA 155.8 204.8 36.4 139.35 301.26 7.49 7.01 7.01 5.96
GHW65CA 90 15 53.5 170 142 14 110 144.2 200.2 23.1 12.9 M16/φ16 25 37.5 15 15 63 53 26 22 18 150 35 M16x50 163.63 324.71 10.02 6.44 6.44 9.17 21.18
GHW65HA 203.6 259.6 52.8 208.36 457.15 14.15 11.12 11.12 12.89
