Linear Guideways
>
|
| Place of Origin | China |
| Brand Name | ZANE |
| Certification | CE，ISO |
| Model Number | ZANE-GEH |

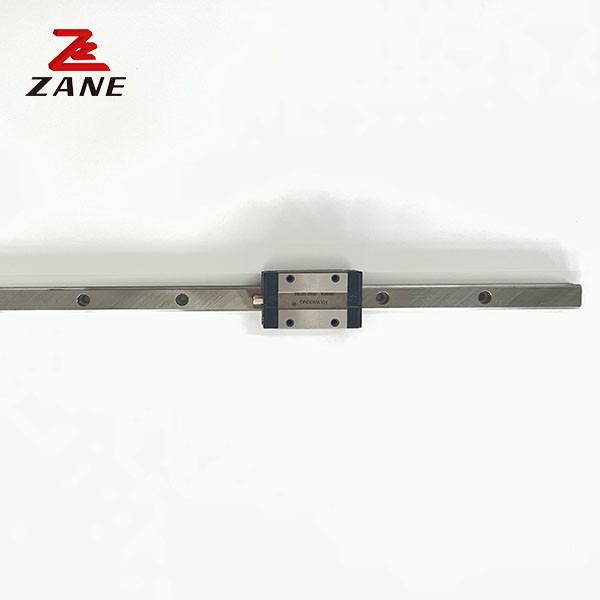

Linear Guide Linear Slide Rail Block Bearing GEH30SA GEH30CA
Products Features
The function of the linear guide motion is to support and guide the moving parts to make a reciprocating linear motion in a given direction. Depending on the nature of the friction, linear motion guides can be classified into sliding friction guides, rolling friction guides, elastic friction guides, and fluid friction guides.
Advantages
1, long life
2, high positioning accuracy
3, easy to disassemble and assemble
4, with great strength
5, the lubrication structure is simple
| Model | Combination size (mm) | Block size(mm) | Slide rail size(mm) | Fixing bolts for slide rails | Basic dynamic fixed load | Basic fixed fixed load | Allowable static moment | weight | |||||||||||||||||||||||||
| Mr kN-m | Mp | My kN-m | block | slide | |||||||||||||||||||||||||||||
| H | Hi | N | W | B | Bi | C | Li | L | Ki | Ki | G | Mxl | T | H2 | h3 | w/ | Hr | D | h | d | P | E | (mm ) | C(kN) | Co(kN) | ||||||||
| GEH15SA | 24 | 4.5 | 9.5 | 34 | 26 | 4 | - | 23.1 | 40.1 | 14.8 | 3.5 | 5.7 | M4x6 | 6 | 5.5 | 6 | 15 | 12.5 | 6 | 4.5 | 3.5 | 60 | 20 | M3xl6 | 5.35 | 9.40 | 0.08 | 0.04 | 0.04 | 0.09 | 1.25 | ||
| GEH15CA | 26 | 39.8 | 56.8 | 10.15 | 7.83 | 16.19 | 0.13 | 0.10 | 0.10 | 0.15 | |||||||||||||||||||||||
| GEH20SA | 28 | 6 | 11 | 42 | 32 | 5 | - | 29 | 50 | 18.75 | 4.15 | 12 | M5x7 | 7.5 | 6 | 6 | 20 | 15.5 | 9.5 | 8.5 | 6 | 60 | 20 | M5xl6 | 7.23 | 12.74 | 0.13 | 0.06 | 0.06 | 0.15 | 2.08 | ||
| GEH20CA | 32 | 48.1 | 69.1 | 12.3 | 10.31 | 21.13 | 0.22 | 0.16 | 0.16 | 0.24 | |||||||||||||||||||||||
| GEH25SA | 33 | 7 | 12.5 | 48 | 35 | 6.5 | - | 35.5 | 59.1 | 21.9 | 4.55 | 12 | M6x9 | 8 | 8 | 8 | 23 | 18 | 11 | 9 | 7 | 60 | 20 | M6x20 | 11.40 | 19.50 | 0.23 | 0.12 | 0.12 | 0.25 | 2.67 | ||
| GEH25CA | 35 | 59 | 82.6 | 16.15 | 16.27 | 32.40 | 0.38 | 0.32 | 0.32 | 0.41 | |||||||||||||||||||||||
| GEH30SA | 42 | 10 | 16 | 60 | 40 | 10 | - | 41.5 | 69.5 | 26.75 | 6 | 12 | M3xl2 | 9 | 8 | 9 | 28 | 23 | 11 | 9 | 7 | 80 | 20 | M6x25 | 16.42 | 28.10 | 0.40 | 0.21 | 0.21 | 0.45 | 4.35 | ||
| GEH30CA | 40 | 70.1 | 98.1 | 21.05 | 23.70 | 47.46 | 0.68 | 0.55 | 0.55 | 0.76 | |||||||||||||||||||||||
| GEH35SA | 48 | 11 | 18 | 70 | 50 | 10 | - | 45 | 75 | 28.5 | 7 | 12 | M8xl2 | 10 | 8.5 | 8.5 | 34 | 27.5 | 14 | 12 | 9 | 80 | 20 | M8x25 | 16.42 | 28.10 | 0.40 | 0.21 | 0.21 | 0.45 | 6.14 | ||
| GEH35CA | 50 | 78 | 108 | 20 | 33.35 | 64.84 | 0.98 | 0.69 | 0.69 | 1.13 | |||||||||||||||||||||||
