GEH35SA Lathes Linear Slide Rail 15mm Interval Linear Motion Rails GEH35CA
  • GEH35SA Lathes Linear Slide Rail 15mm Interval Linear Motion Rails GEH35CA
GEH35SA Lathes Linear Slide Rail 15mm Interval Linear Motion Rails GEH35CA

GEH35SA Lathes Linear Slide Rail 15mm Interval Linear Motion Rails GEH35CA

Place of Origin China
Brand Name ZANE
Certification CE，ISO
Model Number ZANE-GEH
Product Details
Product Name:
Mini Linear Rail Guide
Rod Length:
Customized
Linear Guide Application:
CNC Machine, Electric Machine, Lathes, Medical Equipment
Length Of Slide Rail:
40-250mm/15mm Interval
Type:
Linear Motion Guideway
MODEL:
GEH20SA GEH20CA
Application:
CNC Machine, Automatic System
Highlight:

lathes Linear Slide Rail

,

Linear Slide Rail for electric machine

,

15mm Interval linear motion rails

Product Description

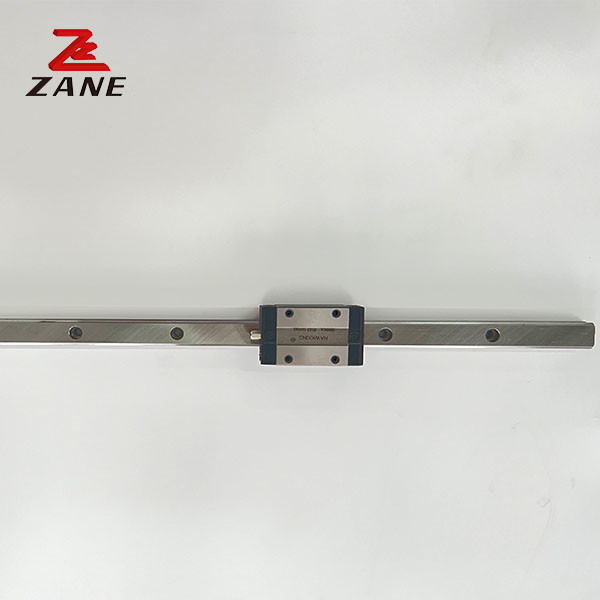

GEH35SA GEH35CA Linear Guide Linear Slide Rail linear motion



Feature of Linear guide rail

  • Easy lubrication
  • Interchangeability
  • Self-aligning capability
  • High rigidity,highly accurate
  • Heavy load radial linear guides
  • Smooth runningHigh speed and accuracy
  • Low friction & vibration
  • Low noise and non-pollution
  • Achieve a long life with high speed



Model Combination size (mm) Block size(mm) Slide rail size(mm)

Fixing bolts for slide rails
size

 Basic dynamic fixed load Basic fixed fixed load Allowable static moment weight
Mr kN-m

Mp
kN-m

 My kN-m

block
kg

slide
Kg/m
H Hi N W B Bi C Li L Ki Ki G Mxl T H2 h3 w/ Hr D h d P E (mm ) C(kN) Co(kN)
GEH15SA 24 4.5 9.5 34 26 4 - 23.1 40.1 14.8 3.5 5.7 M4x6 6 5.5 6 15 12.5 6 4.5 3.5 60 20 M3xl6 5.35 9.40 0.08 0.04 0.04 0.09 1.25
GEH15CA 26 39.8 56.8 10.15 7.83 16.19 0.13 0.10 0.10 0.15
GEH20SA 28 6 11 42 32 5 - 29 50 18.75 4.15 12 M5x7 7.5 6 6 20 15.5 9.5 8.5 6 60 20 M5xl6 7.23 12.74 0.13 0.06 0.06 0.15 2.08
GEH20CA 32 48.1 69.1 12.3 10.31 21.13 0.22 0.16 0.16 0.24
GEH25SA 33 7 12.5 48 35 6.5 - 35.5 59.1 21.9 4.55 12 M6x9 8 8 8 23 18 11 9 7 60 20 M6x20 11.40 19.50 0.23 0.12 0.12 0.25 2.67
GEH25CA 35 59 82.6 16.15 16.27 32.40 0.38 0.32 0.32 0.41
GEH30SA 42 10 16 60 40 10 - 41.5 69.5 26.75 6 12 M3xl2 9 8 9 28 23 11 9 7 80 20 M6x25 16.42 28.10 0.40 0.21 0.21 0.45 4.35
GEH30CA 40 70.1 98.1 21.05 23.70 47.46 0.68 0.55 0.55 0.76
GEH35SA 48 11 18 70 50 10 - 45 75 28.5 7 12 M8xl2 10 8.5 8.5 34 27.5 14 12 9 80 20 M8x25 16.42 28.10 0.40 0.21 0.21 0.45 6.14
GEH35CA 50 78 108 20 33.35 64.84 0.98 0.69 0.69 1.13

GEH35SA Lathes Linear Slide Rail 15mm Interval Linear Motion Rails GEH35CA 0
