Linear Guideways
>
|
| Place of Origin | China |
| Brand Name | ZANE |
| Certification | CE,ISO |
| Model Number | GMH20CA |

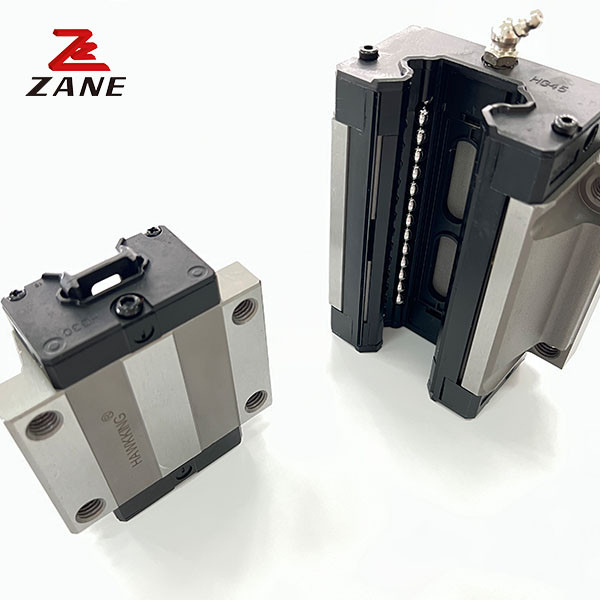

Linear Guideways are a type of linear motion system which provide smooth and efficient movement along a linear rail guide. They are designed to allow a high degree of smoothness with minimal maintenance, making them ideal for industrial applications. These systems can also be customized to fit your particular width and height requirements. With high precision and accuracy, these linear sliding guide systems deliver reliable linear motion control while ensuring a long service life. The linear guide rail system integrates components such as linear guide rails, linear bearing blocks, and linear roller slides for a complete linear motion solution.
| Model | Combination size (mm) | Block size(mm) | Slide rail size(mm) | Rated dynamic load | Rated static load |
Allowable static moment Kgf*M
(kgf • m) |
Sliding rail fastening bolt dimensions (mm) |
||||||||||||||||
| H | Hl | N | W | B | Bl | c | L1 | L | MxL | Wr | Hr | D | h | d | P | E | C(kgf) | C(kgf) | Mr | Mp | My | ||
| GMH3CA | 4 | 1 | 2.5 | 8 | - | - | 3.5 | 6.7 | 11.5 | Ml. 6x1. 3 | 3 | 2.6 | - | - | Ml. 6 | 10 | 5 | 19 | 32 | 0. 06 | 0. 04 | 0. 04 | M1.6xL |
| GMH3HA | 5.5 | 10.7 | 15.5 | M2xl. 3 | 3 | 30 | 58 | 0.09 | 0.11 | 0. 11 | |||||||||||||
| GMH5CA | 6 | 1 | 3.5 | 12 | 8 | 2 | - | 9.6 | 16 | M2xl. 5 | 5 | 3.7 | 3.6 | 0.8 | 2.4 | 15 | 7.5 | 34 | 56 | 0.17 | 0.1 | 0.1 | M2X6 |
| GMH5HA | 8 | - | 12.6 | 19 | 45 | 92 | 0. 24 | 0.21 | 0.21 | ||||||||||||||
| GMH7CA | 8 | 1.5 | 5 | 17 | 12 | 2.5 | 8 | 14.3 | 23.5 | M2x2. 5 | 7 | 5 | 4.2 | 2.3 | 2.4 | 15 | 7.5 | 100 | 127 | 0.48 | 0. 29 | 0. 29 | M2X6 |
| GMH7HA | 12 | 21.6 | 31 | 140 | 200 | 0. 78 | 0.9 | 0.49 | |||||||||||||||
| GMH7SA | - | 9.6 | 19 | 96 | 116 | 0. 42 | 0.18 | 0.15 | |||||||||||||||
| GMH9CA | 10 | 2 | 5.5 | 20 | 15 | 2.5 | 10 | 20.8 | 30 | M3x3 | 9 | 6 | 6 | 3.5 | 3.5 | 20 | 10 | 190 | 260 | 1.2 | 0. 75 | 0. 75 | M3X8 |
| GMH9HA | 15 | 30.9 | 40.5 | 260 | 410 | 2 | 1.9 | 1.9 | |||||||||||||||
| GMH9SA | - | 11.9 | 21.5 | 120 | 151 | 0.7 | 0.3 | 0. 24 | |||||||||||||||
| GMH12CA | 13 | 3 | 7.5 | 27 | 20 | 3.5 | 15 | 21.6 | 34 | M3x3. 5 | 12 | 8 | 6.5 | 4.5 | 3.5 | 25 | 12.5 | 290 | 400 | 2.6 | 1.4 | 1.4 | M3X8 |
| GMH12HA | 20 | 32 | 44 | 380 | 600 | 3.9 | 3.7 | 3.7 | |||||||||||||||
| GMH12SA | - | 13 | 25 | 225 | 243 | 1.5 | 0. 53 | 0.46 | |||||||||||||||
| GMH15CA | 16 | 4 | 8.5 | 32 | 25 | 3.5 | 20 | 27.9 | 42 | M3x4 | 15 | 10 | 6.5 | 4.5 | 3.5 | 40 | 20 | 470 | 570 | 4.6 | 2.2 | 2.2 | M3X10 |
| GMH15HA | 25 | 42.8 | 57 | 650 | 930 | 7.5 | 5.9 | 5.9 | |||||||||||||||
| GMH15SA | - | 17.7 | 32 | 356 | 397 | 3.1 | 1.2 | 1 | |||||||||||||||
| GMH20CA | 20 | 5 | 10 | 10 | 30 | 5 | 25 | 34.6 | 50 | M4x6 | 20 | 11 | 9.5 | 5.5 | 6 | 60 | 30 | 678 | 926 | 9.4 | 5.4 | 4.5 | M5X14 |
| GMH20HA | 30 | 52.3 | 68 | 868 | 1316 | 13.4 | 10.4 | 8.7 | |||||||||||||||
| GMH20SA | - | 22.3 | 38 | 467 | 540 | 5.5 | 2 | 1.7 | |||||||||||||||
