| Place of Origin | China |
| Brand Name | ZANE |
| Certification | CE,ISO |
| Model Number | GMH12CA |

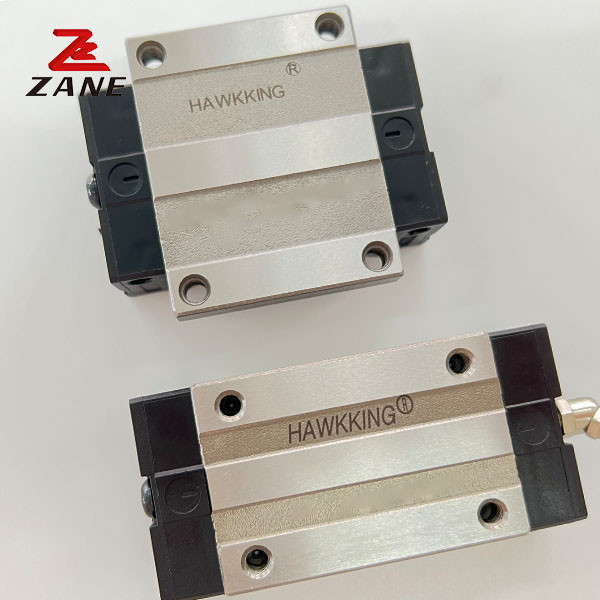

Linear Guideways provide an efficient and cost-effective linear motion system solution for applications that require smooth and precise movement. It is a type of linear motion slider that is designed to provide high-precision linear motion to operate in a wide range of temperatures. With minimal noise and low friction, the Linear Guideways offer superior performance and increased efficiency compared to other linear motion solutions. Its components, such as linear motion guide rails and linear motion bearings, provide a smooth and uniform motion along the rail, while its customized width and profile allow for maximum flexibility. The Linear Guideways is an ideal choice for applications that require precision linear motion, low noise and operating temperatures.
| Model | Combination size (mm) | Block size(mm) | Slide rail size(mm) | Rated dynamic load | Rated static load |
Allowable static moment Kgf*M
(kgf • m) |
Sliding rail fastening bolt dimensions (mm) |
||||||||||||||||
| H | Hl | N | W | B | Bl | c | L1 | L | MxL | Wr | Hr | D | h | d | P | E | C(kgf) | C(kgf) | Mr | Mp | My | ||
| GMH3CA | 4 | 1 | 2.5 | 8 | - | - | 3.5 | 6.7 | 11.5 | Ml. 6x1. 3 | 3 | 2.6 | - | - | Ml. 6 | 10 | 5 | 19 | 32 | 0. 06 | 0. 04 | 0. 04 | M1.6xL |
| GMH3HA | 5.5 | 10.7 | 15.5 | M2xl. 3 | 3 | 30 | 58 | 0.09 | 0.11 | 0. 11 | |||||||||||||
| GMH5CA | 6 | 1 | 3.5 | 12 | 8 | 2 | - | 9.6 | 16 | M2xl. 5 | 5 | 3.7 | 3.6 | 0.8 | 2.4 | 15 | 7.5 | 34 | 56 | 0.17 | 0.1 | 0.1 | M2X6 |
| GMH5HA | 8 | - | 12.6 | 19 | 45 | 92 | 0. 24 | 0.21 | 0.21 | ||||||||||||||
| GMH7CA | 8 | 1.5 | 5 | 17 | 12 | 2.5 | 8 | 14.3 | 23.5 | M2x2. 5 | 7 | 5 | 4.2 | 2.3 | 2.4 | 15 | 7.5 | 100 | 127 | 0.48 | 0. 29 | 0. 29 | M2X6 |
| GMH7HA | 12 | 21.6 | 31 | 140 | 200 | 0. 78 | 0.9 | 0.49 | |||||||||||||||
| GMH7SA | - | 9.6 | 19 | 96 | 116 | 0. 42 | 0.18 | 0.15 | |||||||||||||||
| GMH9CA | 10 | 2 | 5.5 | 20 | 15 | 2.5 | 10 | 20.8 | 30 | M3x3 | 9 | 6 | 6 | 3.5 | 3.5 | 20 | 10 | 190 | 260 | 1.2 | 0. 75 | 0. 75 | M3X8 |
| GMH9HA | 15 | 30.9 | 40.5 | 260 | 410 | 2 | 1.9 | 1.9 | |||||||||||||||
| GMH9SA | - | 11.9 | 21.5 | 120 | 151 | 0.7 | 0.3 | 0. 24 | |||||||||||||||
| GMH12CA | 13 | 3 | 7.5 | 27 | 20 | 3.5 | 15 | 21.6 | 34 | M3x3. 5 | 12 | 8 | 6.5 | 4.5 | 3.5 | 25 | 12.5 | 290 | 400 | 2.6 | 1.4 | 1.4 | M3X8 |
| GMH12HA | 20 | 32 | 44 | 380 | 600 | 3.9 | 3.7 | 3.7 | |||||||||||||||
| GMH12SA | - | 13 | 25 | 225 | 243 | 1.5 | 0. 53 | 0.46 | |||||||||||||||
| GMH15CA | 16 | 4 | 8.5 | 32 | 25 | 3.5 | 20 | 27.9 | 42 | M3x4 | 15 | 10 | 6.5 | 4.5 | 3.5 | 40 | 20 | 470 | 570 | 4.6 | 2.2 | 2.2 | M3X10 |
| GMH15HA | 25 | 42.8 | 57 | 650 | 930 | 7.5 | 5.9 | 5.9 | |||||||||||||||
| GMH15SA | - | 17.7 | 32 | 356 | 397 | 3.1 | 1.2 | 1 | |||||||||||||||
| GMH20CA | 20 | 5 | 10 | 10 | 30 | 5 | 25 | 34.6 | 50 | M4x6 | 20 | 11 | 9.5 | 5.5 | 6 | 60 | 30 | 678 | 926 | 9.4 | 5.4 | 4.5 | M5X14 |
| GMH20HA | 30 | 52.3 | 68 | 868 | 1316 | 13.4 | 10.4 | 8.7 | |||||||||||||||
| GMH20SA | - | 22.3 | 38 | 467 | 540 | 5.5 | 2 | 1.7 | |||||||||||||||
