| Place of Origin | China |
| Brand Name | ZANE |
| Certification | CE,ISO |
| Model Number | GMH9CA |
Linear Guideways are a superior linear motion bearing and linear sliding guide system, designed for high-speed, low noise level applications. The system has a wide operating temperature range and is available in both square and flange mounting types. Made from durable stainless steel, the linear motion system is extremely reliable and provides a smooth, efficient and precise linear motion. The linear guideways are easy to install and maintain, and are suitable for use in a variety of industrial, commercial and domestic applications. The linear guideways provide a high degree of accuracy and repeatability, making them a great choice for applications that require precision. With a wide range of sizes and configurations, the linear guideways are an ideal choice for all linear motion applications.
| Model | Combination size (mm) | Block size(mm) | Slide rail size(mm) | Rated dynamic load | Rated static load |
Allowable static moment Kgf*M
(kgf • m) |
Sliding rail fastening bolt dimensions (mm) |
||||||||||||||||
| H | Hl | N | W | B | Bl | c | L1 | L | MxL | Wr | Hr | D | h | d | P | E | C(kgf) | C(kgf) | Mr | Mp | My | ||
| GMH3CA | 4 | 1 | 2.5 | 8 | - | - | 3.5 | 6.7 | 11.5 | Ml. 6x1. 3 | 3 | 2.6 | - | - | Ml. 6 | 10 | 5 | 19 | 32 | 0. 06 | 0. 04 | 0. 04 | M1.6xL |
| GMH3HA | 5.5 | 10.7 | 15.5 | M2xl. 3 | 3 | 30 | 58 | 0.09 | 0.11 | 0. 11 | |||||||||||||
| GMH5CA | 6 | 1 | 3.5 | 12 | 8 | 2 | - | 9.6 | 16 | M2xl. 5 | 5 | 3.7 | 3.6 | 0.8 | 2.4 | 15 | 7.5 | 34 | 56 | 0.17 | 0.1 | 0.1 | M2X6 |
| GMH5HA | 8 | - | 12.6 | 19 | 45 | 92 | 0. 24 | 0.21 | 0.21 | ||||||||||||||
| GMH7CA | 8 | 1.5 | 5 | 17 | 12 | 2.5 | 8 | 14.3 | 23.5 | M2x2. 5 | 7 | 5 | 4.2 | 2.3 | 2.4 | 15 | 7.5 | 100 | 127 | 0.48 | 0. 29 | 0. 29 | M2X6 |
| GMH7HA | 12 | 21.6 | 31 | 140 | 200 | 0. 78 | 0.9 | 0.49 | |||||||||||||||
| GMH7SA | - | 9.6 | 19 | 96 | 116 | 0. 42 | 0.18 | 0.15 | |||||||||||||||
| GMH9CA | 10 | 2 | 5.5 | 20 | 15 | 2.5 | 10 | 20.8 | 30 | M3x3 | 9 | 6 | 6 | 3.5 | 3.5 | 20 | 10 | 190 | 260 | 1.2 | 0. 75 | 0. 75 | M3X8 |
| GMH9HA | 15 | 30.9 | 40.5 | 260 | 410 | 2 | 1.9 | 1.9 | |||||||||||||||
| GMH9SA | - | 11.9 | 21.5 | 120 | 151 | 0.7 | 0.3 | 0. 24 | |||||||||||||||
| GMH12CA | 13 | 3 | 7.5 | 27 | 20 | 3.5 | 15 | 21.6 | 34 | M3x3. 5 | 12 | 8 | 6.5 | 4.5 | 3.5 | 25 | 12.5 | 290 | 400 | 2.6 | 1.4 | 1.4 | M3X8 |
| GMH12HA | 20 | 32 | 44 | 380 | 600 | 3.9 | 3.7 | 3.7 | |||||||||||||||
| GMH12SA | - | 13 | 25 | 225 | 243 | 1.5 | 0. 53 | 0.46 | |||||||||||||||
| GMH15CA | 16 | 4 | 8.5 | 32 | 25 | 3.5 | 20 | 27.9 | 42 | M3x4 | 15 | 10 | 6.5 | 4.5 | 3.5 | 40 | 20 | 470 | 570 | 4.6 | 2.2 | 2.2 | M3X10 |
| GMH15HA | 25 | 42.8 | 57 | 650 | 930 | 7.5 | 5.9 | 5.9 | |||||||||||||||
| GMH15SA | - | 17.7 | 32 | 356 | 397 | 3.1 | 1.2 | 1 | |||||||||||||||
| GMH20CA | 20 | 5 | 10 | 10 | 30 | 5 | 25 | 34.6 | 50 | M4x6 | 20 | 11 | 9.5 | 5.5 | 6 | 60 | 30 | 678 | 926 | 9.4 | 5.4 | 4.5 | M5X14 |
| GMH20HA | 30 | 52.3 | 68 | 868 | 1316 | 13.4 | 10.4 | 8.7 | |||||||||||||||
| GMH20SA | - | 22.3 | 38 | 467 | 540 | 5.5 | 2 | 1.7 | |||||||||||||||

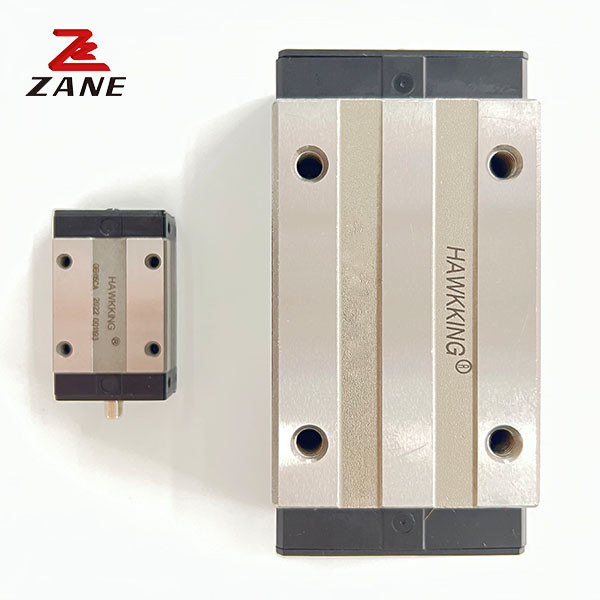

ZANE's GMH9CA Linear Guideways are high-performance linear motion components that provide linear motion solutions for a wide range of applications. The high-precision, low-noise, low-maintenance and durable GMH9CA Linear Guideways offer superior performance, a wide operating temperature range and a customized height. The Linear Guideways provide reliable, smooth and accurate linear motion, and are widely used in linear automation systems, CNC machine tools and other industries. They also can be used in combination with other linear motion components such as linear sliding guides, linear motion components and linear motion component systems for high-precision, low-noise, high-efficiency and low-maintenance operation.
