Single Axis Actuator
>
|
| Place of Origin | China |
| Brand Name | ZANE |
| Certification | CE,ISO |
| Model Number | F136 |

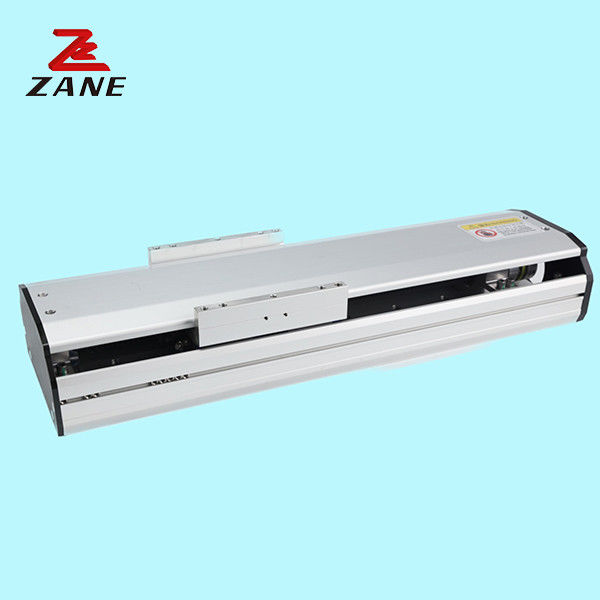

The Single Axis Actuator, a rotational motion unit designed for axial motion control. With improved integrated guide design, improved rigidity, straightness, and flatness lead to higher performance in applications. This means that the F136 can perform well in high-precision applications such as metrology and laser scanning systems. The improved design is also easy to install and maintain.
| Driver power(W) | 400W | |||
| Ball screw (16) mm lead | P05:5 | P10:10 | P20:20 | |
| Maximum speed(mm/s): | 250 | 500 | 1000 | |
| Maximum handling weight(kg) | Level | 60kg | 50kg | 40kg |
| Perpendicularity | 40kg | 35kg | 30kg | |
| Repeated positioning accuracy (mm): | Class C +0.02mm; P level +0.01mm | |||
| Range of travel(mm): | The range is 50 to 1500mm | |||
| Load moment(N.m ) | Mx:50; My:70; Mz:70 | |||
| Load mechanism | GEH15 Dual track | |||
| Driving mechanism | Grade C. 16 to grade C7; Grade P ·16 Grinding grade C5 | |||
| Base material | Hard extruded aluminum profile, luster itself | |||
| Installation surface accuracy requirements | Less than 0.05mm | |||
| Dust proof design | Full seal dust proof | |||
ZANE Single Axis Actuator (Model Number: F136) is a linear actuation system with superior performance, suitable for robotic motion component and axial motion controller. It is certified by CE,ISO and is highly reliable and cost-effective. It has a speed of 250mm/s and is applicable to a variety of automation equipment, photovoltaic industry, laser equipment and etc. It is compatible with cutting heads like BT240 and BMH111.
ZANE Single Axis Actuator is manufactured with high-quality material and advanced technology that ensures superior performance and long-lasting durability. It is easy to install and highly compatible, making it ideal for various applications. It also comes with an adjustable knob that can be used to adjust speed and position.
