Linear Bearings Ball Screw Actuator Axial Actuator System For Automation Equipment

Product Description:

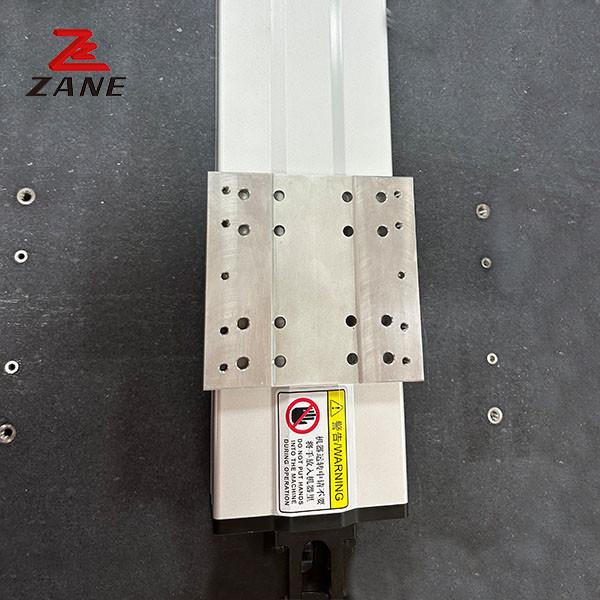

The ZCB Single Axis Actuator is an essential mechanical motion device for robotic motion and automation applications. With a robust aluminum alloy frame, integrated linear bearings, and ball screw actuator, the ZCB Single Axis Actuator is designed to provide precise and reliable robotic motion. This one-axis actuator is capable of achieving a stroke length of 100-800mm with a high repeatability and accuracy. It is an ideal robotic motion component for automation projects of various kinds.

Technical Parameters:

  Horizontal installation                        Unit:MM             Wall mounting                                          Unit:MM

Features:

1.Linear Motion: Single-axis actuators provide linear motion along a single axis, typically in a straight line. The direction and extent of the linear motion depend on the actuator design and configuration.

2.Motor Types: Single-axis actuators can be powered by various types of motors, including electric motors (such as DC motors or stepper motors), hydraulic motors, or pneumatic motors. The motor provides the rotational force required to drive the linear motion.

3.Control Options: Actuators can be controlled manually or through automated systems. Manual control may involve switches, buttons, or levers, while automated control can be achieved using computer interfaces, programmable logic controllers (PLCs), or other control systems.

4.Speed and Force: Single-axis actuators have different speed and force capabilities depending on their design and motor type. Actuators can be optimized for high-speed motion, high-force applications, or a combination of both.
