Single Axis Actuator
>
|
| Place of Origin | China |
| Brand Name | ZANE |
| Certification | CE,ISO |
| Model Number | ZHH210 |

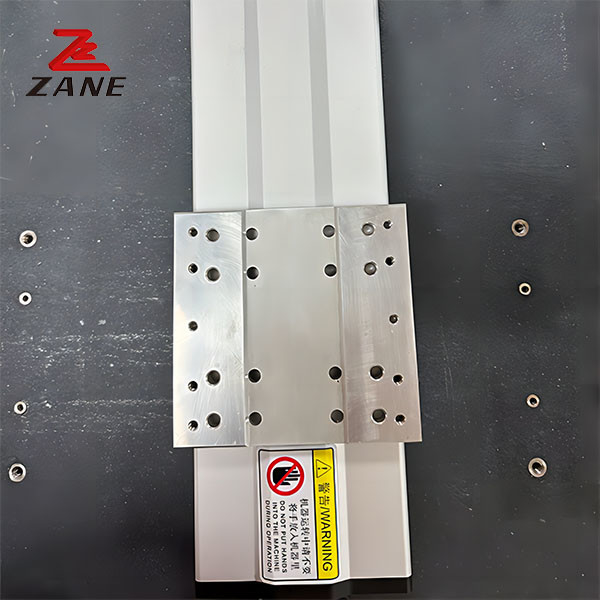

The Single Axis Actuator from ZHH is a Linear Movement System designed for industrial automation equipment applications. It is constructed of high-grade Aluminum Alloy for improved durability and features integrated linear bearings ball screw actuator for smooth and precise linear movement. This Single Axis Actuator is a reliable and cost-effective solution for any industrial automation equipment. It has been designed for maximum precision and efficiency, ensuring reliable and accurate linear movement. The integrated ball screw actuator provides smooth and accurate linear movement and the aluminum alloy construction ensures durability. With its robust construction, the Single Axis Actuator is an excellent choice for industrial automation applications.
| Motor power | 750W | |||
| Repeated positioning accuracy | Class C ±0.02MM and Class P ±0.01MM | |||
| Outside diameter of lead screw(a) | 25/32 | |||
| Lead of the lead screw(MM) | 5 | 10 | 25 | |
| Maximum speed(MM/SEC) | 250 | 500 | 1250 | |
| Maximum load(KG) | level | 205 | 170 | 83 |
| vertical | 68 | 50 | 22 | |
| Rated thrust(N) | 2710 | 1350 | 540 | |
| Stroke(MM) | 100-1800(50interval) | |||
| Rated motor speed(RPM) | 3000 | |||
Horizontal installation Unit:MM Wall mounting Unit:MM Vertical mounting Unit:MM
|
|
|
