Single Axis Actuator
>
|
| Place of Origin | China |
| Brand Name | ZANE |
| Certification | CE,ISO |
| Model Number | F136 |

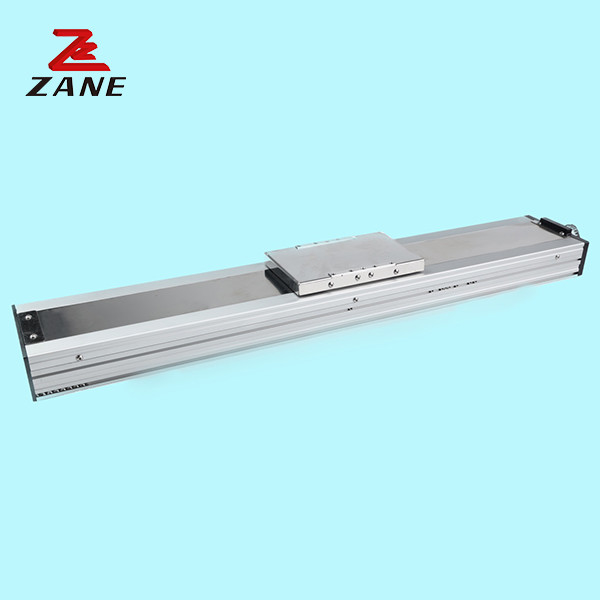

The Single Axis Actuator is an axial actuator system that is suitable for a variety of applications including automation equipment, photovoltaic industry, and laser equipment. It is made of lightweight and durable aluminum alloy and driven by a powerful 400W motor. This Single Axis Actuator is equipped with a planetary gearing arrangement that ensures superior performance and reliability. It is also designed for easy installation and maintenance.
| Driver power(W) | 400W | |||
| Ball screw (16) mm lead | P05:5 | P10:10 | P20:20 | |
| Maximum speed(mm/s): | 250 | 500 | 1000 | |
| Maximum handling weight(kg) | Level | 60kg | 50kg | 40kg |
| Perpendicularity | 40kg | 35kg | 30kg | |
| Repeated positioning accuracy (mm): | Class C +0.02mm; P level +0.01mm | |||
| Range of travel(mm): | The range is 50 to 1500mm | |||
| Load moment(N.m ) | Mx:50; My:70; Mz:70 | |||
| Load mechanism | GEH15 Dual track | |||
| Driving mechanism | Grade C. 16 to grade C7; Grade P ·16 Grinding grade C5 | |||
| Base material | Hard extruded aluminum profile, luster itself | |||
| Installation surface accuracy requirements | Less than 0.05mm | |||
| Dust proof design | Full seal dust proof | |||
1. High precision, guide rails come directly into contact with the mounting base, maximizing the benefits of linear guide rails and reducing cumulative errors
2. Products are very practical, can be combined to complete more complex tasks.
3 Supports automatic loading and unloading, product sorting in designated positions, component pickup, and pushing into workpiece holes
4 Multiple features include assembly parts, inkjet operation, flexible picking, component handling, loading and unloading parts inspection systems
5 Suitable for automation equipment, providing the mechanical structure of linear movement to a single axis robot
