Single Axis Actuator
>
|
| Place of Origin | China |
| Brand Name | ZANE |
| Certification | CE,ISO |
| Model Number | F136 |

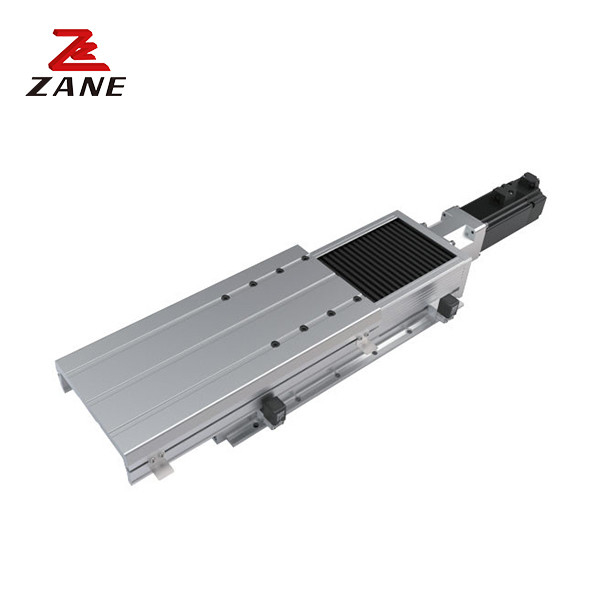

Single Axis Actuator is a robotic motion component that is widely used in automation equipment and photovoltaic industry, laser equipment, and other industrial environments. It has a stroke length of 250mm, a driving power of 400W, and a speed of 500mm/s, and is applicable for cutting heads BT240 and BMH111. It has been designed for reliable performance and precision, and its applications include robotic motion control, robotic arm positioning, and other industrial automation applications. The Single Axis Actuator is a robust and reliable one-axis actuator, which provides accurate linear motion control, making it ideal for precision motion control applications.
| Driver power(W) | 400W | |||
| Ball screw (16) mm lead | P05:5 | P10:10 | P20:20 | |
| Maximum speed(mm/s): | 250 | 500 | 1000 | |
| Maximum handling weight(kg) | Level | 60kg | 50kg | 40kg |
| Perpendicularity | 40kg | 35kg | 30kg | |
| Repeated positioning accuracy (mm): | Class C +0.02mm; P level +0.01mm | |||
| Range of travel(mm): | The range is 50 to 1500mm | |||
| Load moment(N.m ) | Mx:50; My:70; Mz:70 | |||
| Load mechanism | GEH15 Dual track | |||
| Driving mechanism | Grade C. 16 to grade C7; Grade P ·16 Grinding grade C5 | |||
| Base material | Hard extruded aluminum profile, luster itself | |||
| Installation surface accuracy requirements | Less than 0.05mm | |||
| Dust proof design | Full seal dust proof | |||
