Single Axis Actuator
>
|
| Place of Origin | China |
| Brand Name | ZANE |
| Certification | CE,ISO |
| Model Number | F136 |

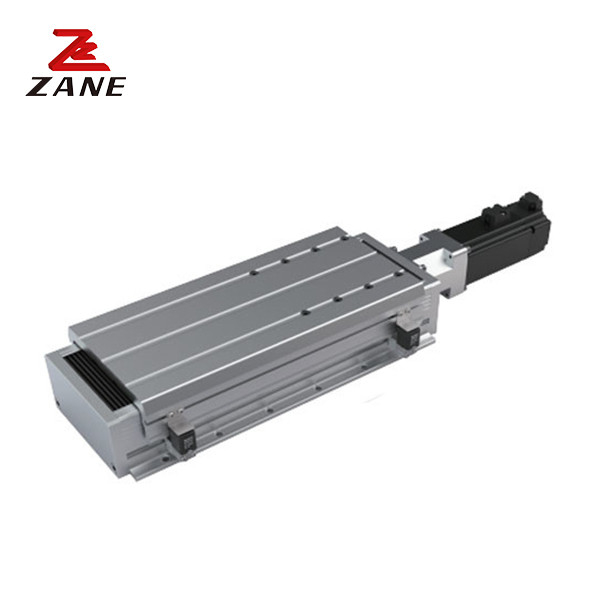

The F136 Single Axis Actuator is an axial motion controller designed to provide one-axis motion with a planetary gearing arrangement. This motor can provide a driving power of up to 400W, making it suitable for applications such as automation equipment, photovoltaic industry, and laser equipment. It is a compact and reliable actuator system that is ideal for any application needing high precision axial motion.
The F136 Single Axis Actuator is highly flexible and capable of being integrated with a variety of different types of automation and control systems. Its small form factor and precision engineering make it a perfect choice for applications where space is at a premium. It is equipped with advanced features such as a high-speed response time, adjustable speed control, and continuous torque output.
The F136 Single Axis Actuator is a great solution for any application needing precise and reliable axial motion. Its high-performance motor and gearing arrangement make it a great choice for applications where accuracy and control are essential. It is a cost-effective and reliable way to add axial motion control to any system.
| Driver power(W) | 400W | |||
| Ball screw (16) mm lead | P05:5 | P10:10 | P20:20 | |
| Maximum speed(mm/s): | 250 | 500 | 1000 | |
| Maximum handling weight(kg) | Level | 60kg | 50kg | 40kg |
| Perpendicularity | 40kg | 35kg | 30kg | |
| Repeated positioning accuracy (mm): | Class C +0.02mm; P level +0.01mm | |||
| Range of travel(mm): | The range is 50 to 1500mm | |||
| Load moment(N.m ) | Mx:50; My:70; Mz:70 | |||
| Load mechanism | GEH15 Dual track | |||
| Driving mechanism | Grade C. 16 to grade C7; Grade P ·16 Grinding grade C5 | |||
| Base material | Hard extruded aluminum profile, luster itself | |||
| Installation surface accuracy requirements | Less than 0.05mm | |||
| Dust proof design | Full seal dust proof | |||
Excellent performance: The linear screw adopts all-metal structure, fine workmanship, stable performance, high working efficiency, safe to use, corrosion-resistant.
High precision: With its exceptional heavy load resistance, you can rely on it to handle even the toughest of tasks. Its high precision ensures accuracy in every movement, while its low friction coefficient helps to reduce wear and tear on the device.
Low resistance: The rotary motion is transformed into a linear motion, small frictional resistance.
